VCF 9.1 API Access (7): VCF Automation Provider Org

On By David ZhangIn Cloud Foundation

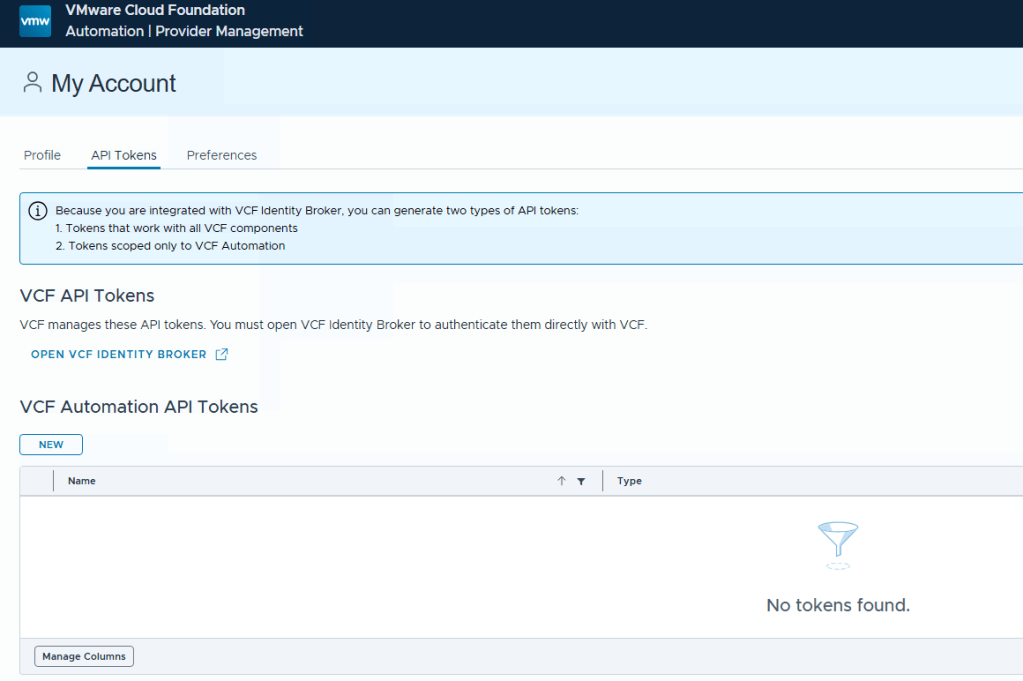

To execute programmatic operations against the VCF Automation Provider Org APIs, administrators can utilize either VCF Automation API Tokens or a VCF IdP Token (VIDB Token).

When leveraging the VIDB Token, authentication requires a two-step process. Below are the sequential API operations required to establish an active session.

Step 1: Exchange VIDB Token for VIDB Bearer Access Token

First, authenticate against the Identity Broker instance to exchange your initial VIDB programmatic token for a short-lived bearer access token.

API Request:

curl --request POST \
  --url https://{{idb-fqdn}}/acs/t/CUSTOMER/token \
  --header 'content-type: application/x-www-form-urlencoded' \
  --data grant_type=urn:custom:vcf:params:oauth:grant-type:api-token \
  --data 'api_token={{ssoUserAPIToken}}'

Response:

JSON

{
  "scope": "openid profile user email group",
  "access_token": "eyJxxxxxxxxxxmDshCxw",
  "token_type": "Bearer",
  "expires_in": 1798
}

Step 2: Exchange VIDB Bearer Access Token for VCF Automation JWT Token

Next, take the access_token retrieved from Step 1 and exchange it at the VCF Automation token endpoint to generate a system-scoped JSON Web Token (JWT).

API Request:

curl --request POST \
  --url https://{{vcfa-fqdn}}/cloudapi/1.0.0/sessions/provider \
  --header 'accept: application/json;version=9.1.0' \
  --header 'authorization: Bearer {{apiAccessToken}};org=system' \
  --header 'content-type: application/json;version=9.1.0'

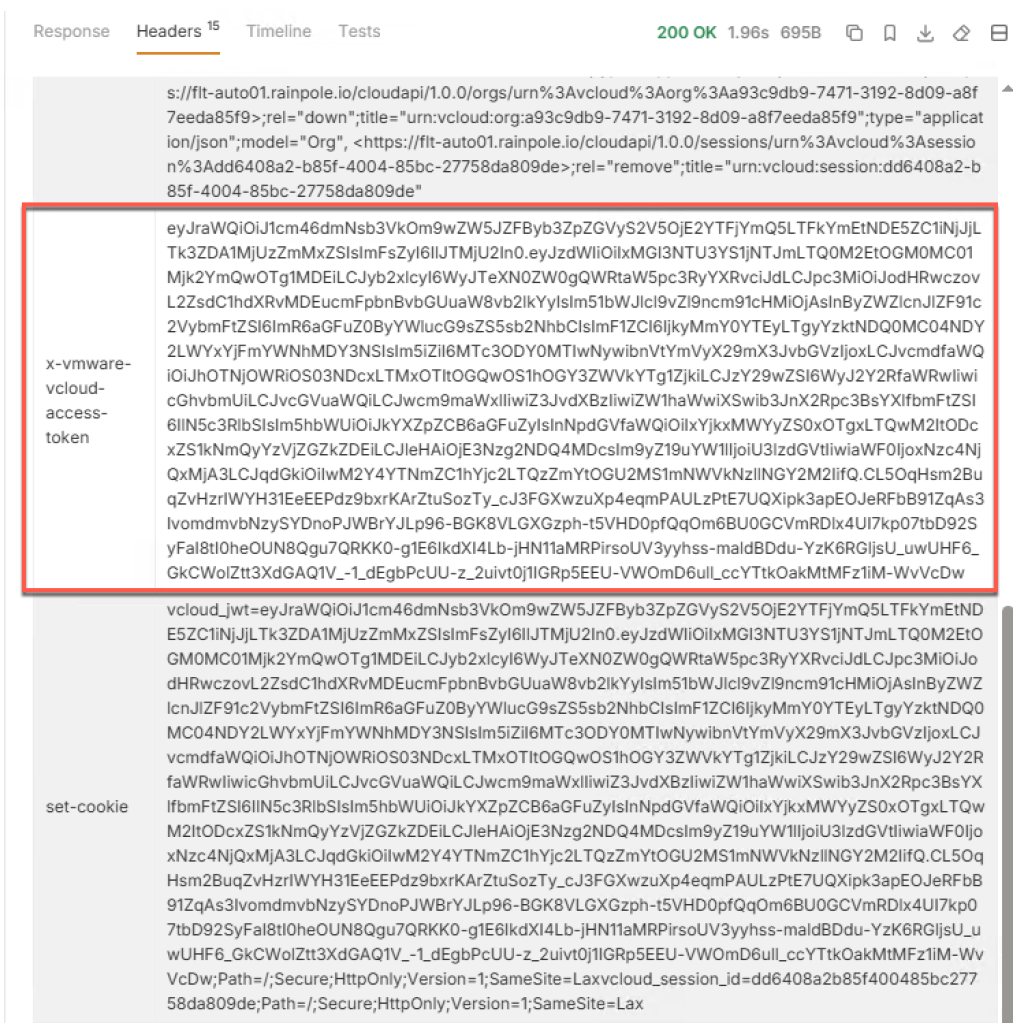

The JWT token is returned inside the response headers rather than the JSON body. You must parse the headers to extract the following key:

x-vmware-vcloud-access-token	eyJraxxxxxaldBDdu-YzK6RGljsU_uwUHF6_GkCWz1iM-WvVcDw

This x-vmware-vcloud-access-token value serves as the authorization token for subsequent VCF Automation API calls.

Example: Utilizing the Session Token

Include the extracted token in your authorisation header when making API calls.

curl --request GET \
  --url 'https://{{vcfa-fqdn}}/cloudapi/1.0.0/orgs?page=1&pageSize=25' \
  --header 'accept: application/json;version=9.1.0' \
  --header 'authorization: Bearer {{vcfa-jwt-token}}' \
  --header 'content-type: application/json;version=9.1.0'

Happy Automating!
