New Ansible F5 HTTPs Health Monitor Module

Just got time this weekend to test the newly released dev version of Ansible F5 HTTPs health monitor. The result of testing looks good: most of common use cases have been covered properly.

Below is my first playbook for my testing:

# This version is to create a new https health monitor
---
- name: f5 config
  hosts:  lb.davidwzhang.com
  connection: local
  vars:
    ports:
      - 443
  tasks:
    - name: creat http healthmonitor
      bigip_monitor_https:
        state:  "present"
        #state: "absent"
        name: "ansible-httpshealthmonitor"
        password: "password"
        server: "10.1.1.122"
        user: "admin"
        validate_certs: "no"
        send: "Get /cgi-bin/env.sh HTTP/1.1\r\nHost:192.168.72.28\r\nConnection: Close\r\n"
        receive: "web"
        interval: "3"
        timeout: "10"
      delegate_to:  localhost

After run the playbook, I log in my F5 BIGIP VE and see the https health monitor has been created successfully.
f5 https healthmonitor

I tried to create another HTTPs health monitor, which includes basic authentication(admin/password) and customized alias address and alias service port(8443).
Playbook:

# This version is to create a new HTTP health monitor
---
- name: f5 config
  hosts:  lb.davidwzhang.com
  connection: local
  vars:
    ports:
      - 443
  tasks:
    - name: creat http healthmonitor
      bigip_monitor_https:
        state:  "present"
        #state: "absent"
        name: "ansible-httpshealthmonitor02"
        password: "password"
        server: "10.1.1.122"
        user: "admin"
        validate_certs: "no"
        ip: "192.168.72.128"
        port: "8443"
        send: "Get /cgi-bin/env.sh\r\n"
        receive: "200"
        interval: "3"
        timeout: "10"
        target_username: "admin"
        target_password: "password"
      delegate_to:  localhost

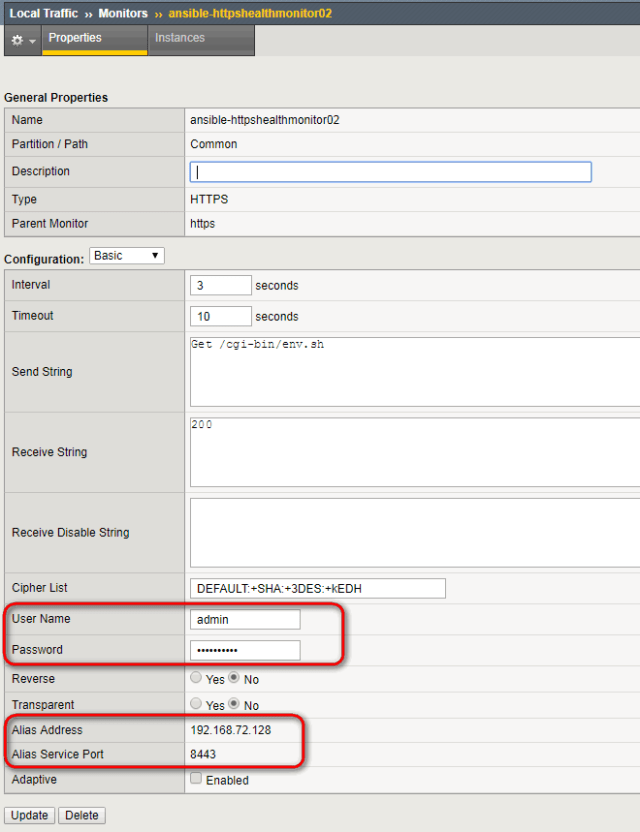

In F5, you can see the below:
f5 https healthmonitor02

In addition, you possibly noticed that I comment a line in the above 2 playbooks:

#state: "absent"

You can use it to remove the health monitor.
